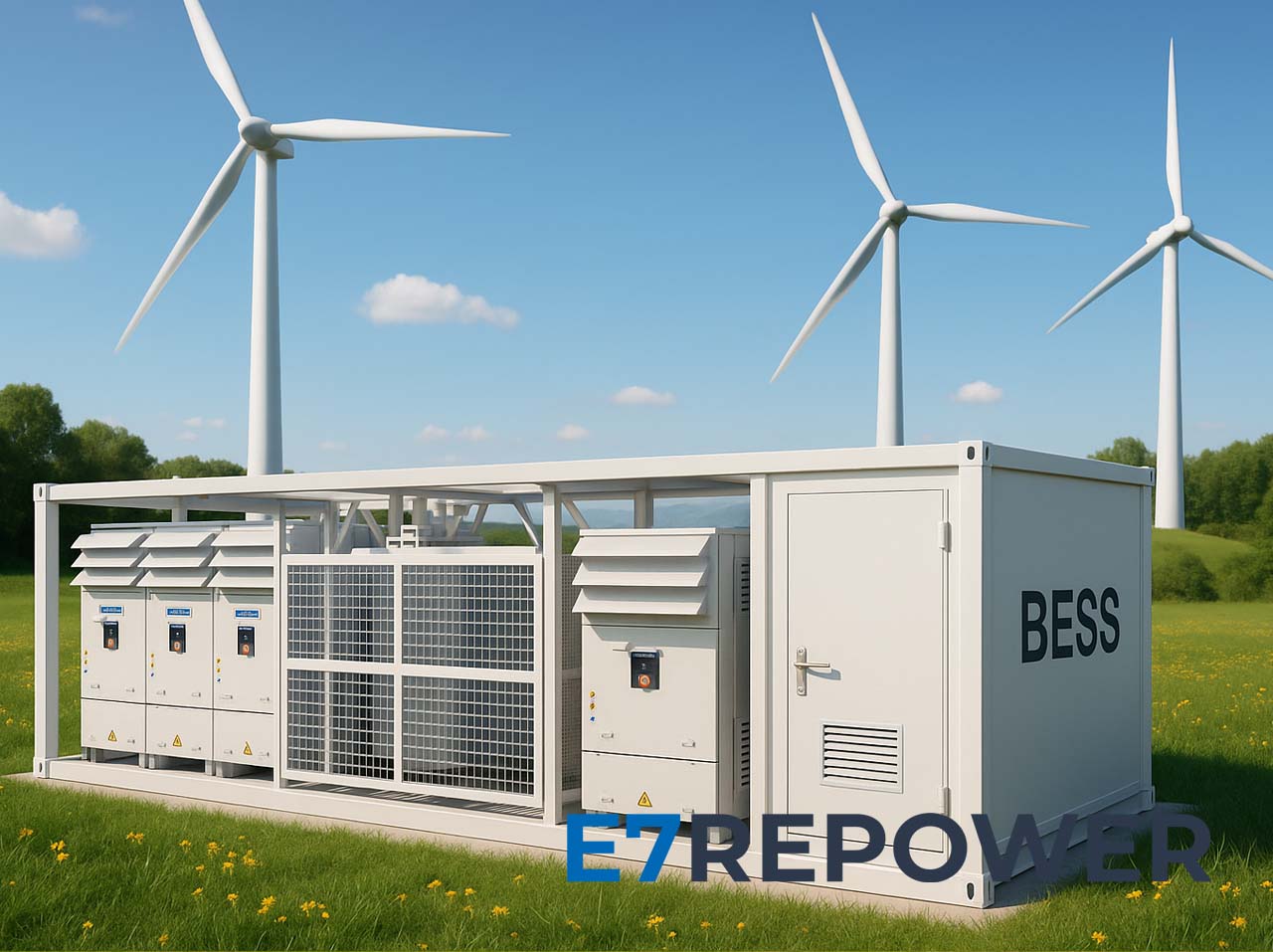

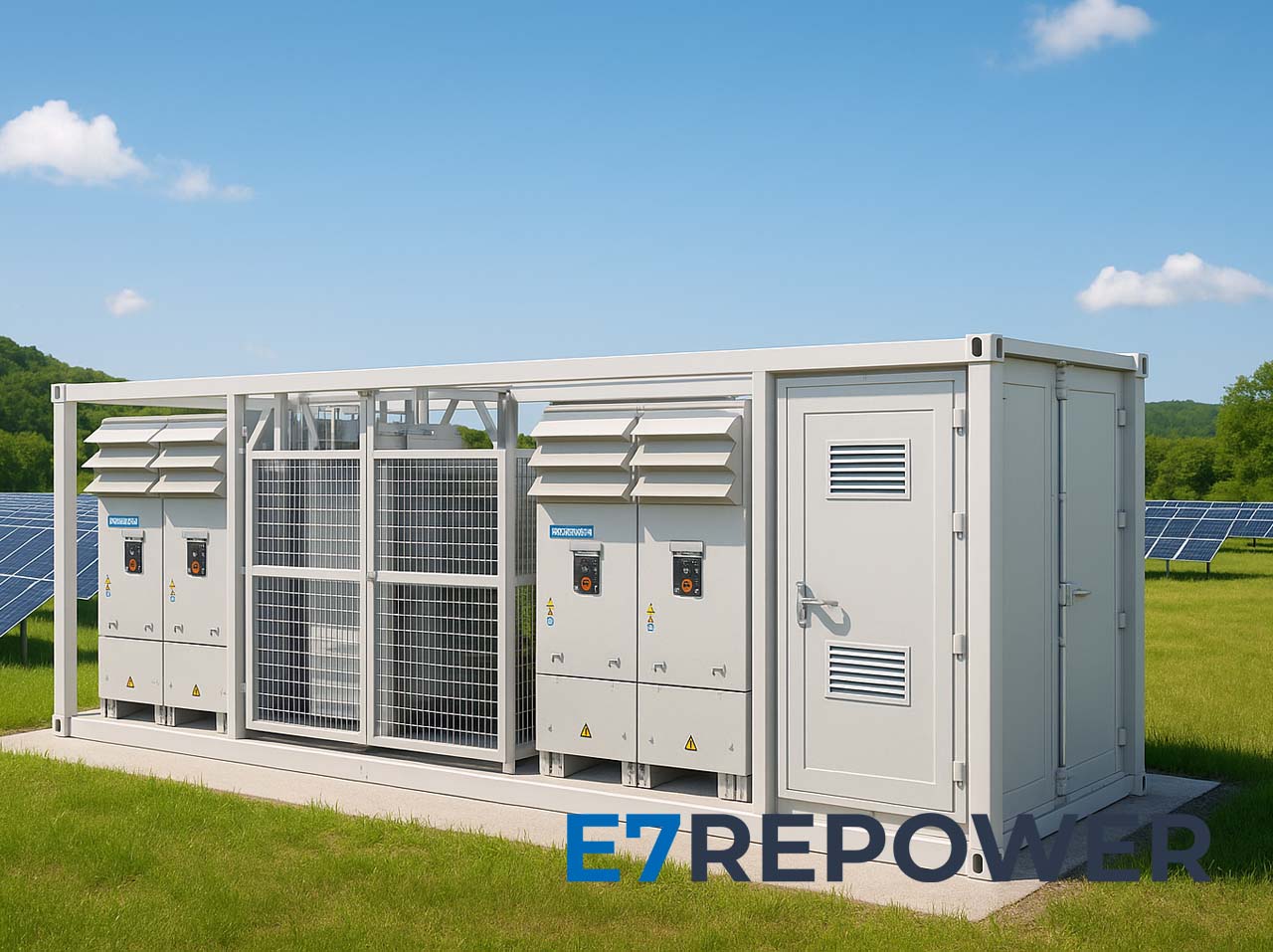

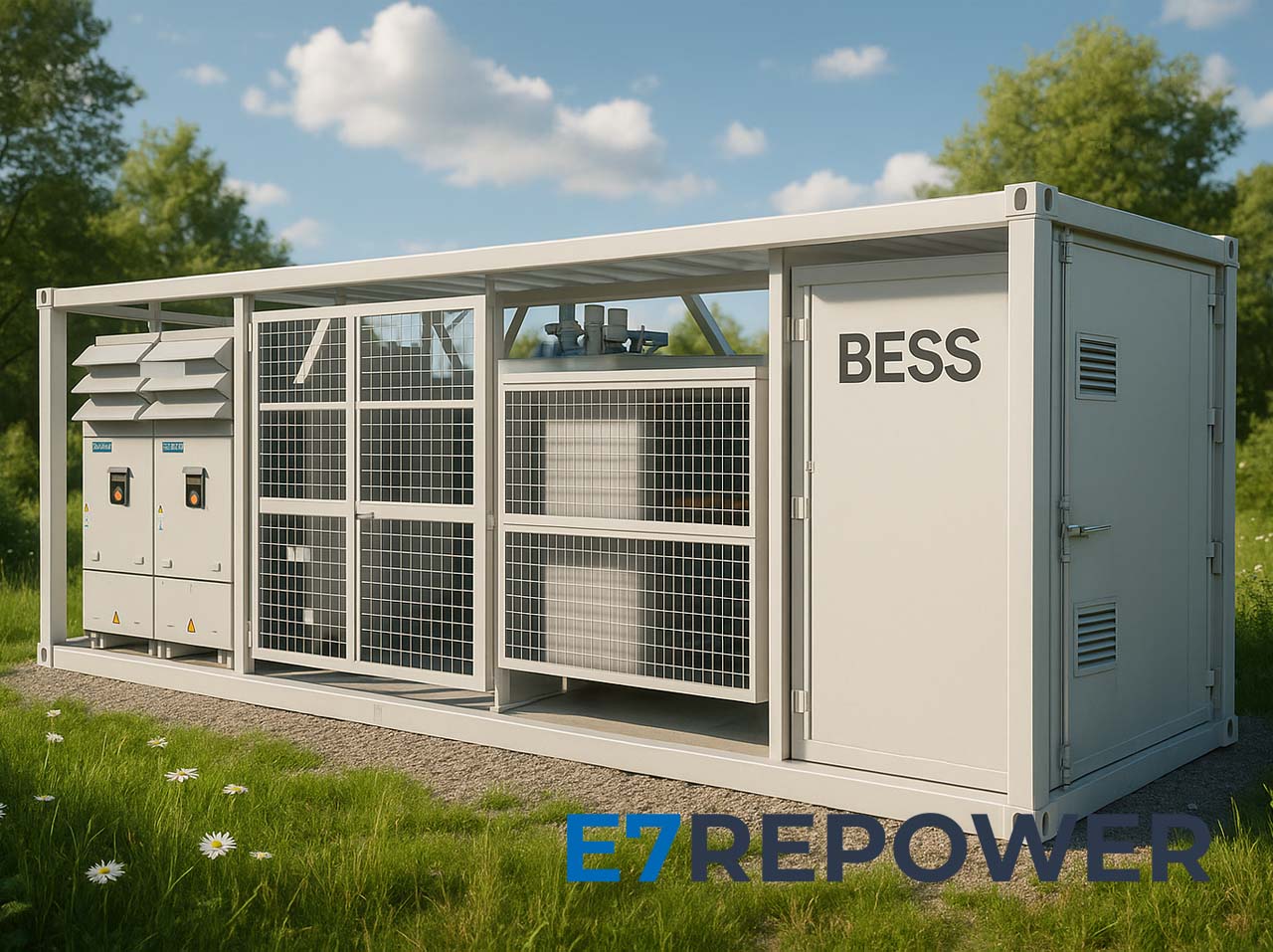

10 MW Centralized Turnkey Station With Transformer Integrated
Applicated Reference
Wind power Station
PV Power Station
Generator Factory
Island
Large-scale
Industrial User
Intelligent and efficient
- Tri-level topology for the PCS; maximum conversion efficiency of 99%
- High-speed communication for parallel PCS operation, effectively reducing circulating current
- Suitable for various grid environments with strong connectivity to complex grids
Safe and reliable
- 50% improved cooling efficiency, immune to heat island effect
- Third-generation enclosed air-water cooling design, offering exceptional environmental adaptability
Cost-effective
- Integrated in a 40-foot standard container, enabling efficient transportation
- Reduced internal redundant components; low noise
| Parameters — Model IPS920-07P-10000-U-EU | |
|---|---|
| DC side | |
| Maximum DC voltage | 1500 V |
| DC voltage range | 1000 V to 1500 V |
| Maximum DC current | 1403 A × 8 |
| Number of DC input channels | 8 |
| AC side (grid-connected) | |
| Rated power | 10000 kVA @ 45℃ |
| Maximum output power | 11000 kVA @ 35℃ |
| Rated grid voltage | 20 kV to 35 kV |
| Rated grid frequency | 50 Hz / 60 Hz * |
| Total harmonic distortion of the current (THD) | < 3% (rated power) |
| Reactive power range | –1.05 (lead) to +1.05 (lag) |
| Power factor | –1 (lead) to +1 (lag) |
| AC connection method | Three-phase three-wire |
| AC side (off-grid) | |
| Rated output frequency | 50 Hz / 60 Hz * |
| Voltage variation | < 1% UN (linear balanced load) |
| Total harmonic distortion of the voltage | < 3% (linear load) |
| Voltage unbalance degree | PCS output voltage unbalance: < 2% or ≤ 4% (short time) |
| System | |
| Cooling method | Natural air cooling ON (transformer) / Air-water cooling (PCS) |
| Allowable ambient temperature | –40°C to +60°C (derating required for temperatures above +45°C) |
| Allowable relative humidity | 0% to 100% (non-condensing) |
| Cable inlet mode | Bottom-in and bottom-out |
| Dimensions (W × D × H) | 12192 mm × 2438 mm × 2896 mm (oil-immersed transformer) |
| Mass | < 40,000 kg |
| Maximum operating altitude | 3000 m (derating required for altitudes above 2000 m) |
| Ingress protection | IP54 (whole device) / IP65 (PCS) |
| Communication | |
| Communication interface | Ethernet, RS485, CAN, and DI/DO |
| Communication protocol | Standard: Modbus-RTU / CAN2.0B Optional: Modbus-TCP, IEC61850, and EtherCAT |
The IPS920-07P-10000-U-EU inverter is an advanced solution for industrial and utility-scale energy projects, delivering efficient power conversion and grid management. On the DC side, it supports up to 1500 V and eight input channels, enabling integration with large photovoltaic arrays and scalable ESS/BESS storage systems. On the AC side, the unit provides 10,000 kVA at 45℃ and up to 11,000 kVA at 35℃, with grid voltage compatibility from 20–35 kV and frequency support of 50/60 Hz. The power factor can be adjusted from –1 (leading) to +1 (lagging), while total harmonic distortion of the current remains below 3%. Designed for reliability, it features natural air and water cooling, ingress protection IP54/65, wide operating temperature from –40°C to +60°C, and altitude tolerance up to 3000 m. Equipped with modern communication interfaces (Ethernet, RS485, CAN, DI/DO) and supporting protocols such as Modbus, IEC61850, and EtherCAT, it integrates seamlessly into digital energy systems and Virtual Power Plants (VPP). This makes it a reliable choice for solar power plants, industrial facilities, and utilities seeking long-term efficiency, flexibility, and minimized operating costs.
